Construction machines

Sort by:

Floor saw type RZ 170 Ø 450

The joint cutting machine RZ 170 is used for cutting work on asphalt and concrete surfaces, e.g. used for repairs to road surfaces, industrial areas, etc.Cutting depth 170 mm 8.7 KW Honda gasoline GX-390 Standard cutting depth display Adjustable rear axle to compensate the cutting pressure for precise cutting lines Water is supplied to the diamond cutting blade via the blade guard Water supply from a pressure line or a tank truck by means of a self-priming, electrically switchable water pump large power reserves

Vibrating plate VD 15P 85 kg

Base plate dimensions, width x length: 400 x 580 mm Frequency: 100 Hz Centrifugal force: 15 kN Maximum working speed: 25 m / min Max. Power / speed: 3.6 KW / 3600 rpm Accessories: water sprinkler system with tank, Vulkollan plate for compacting pavement, transport wheels, operating hours counter and gas lever on the handle

Vibrating plate VD - 20P 105 kg

Application information: Dimensions of the base plate width x length: 500 x 565 mm Frequency: 100 Hz Centrifugal force: 20 kN Maximum working speed: 25 m / min Max. Power / speed: 3.6 KW / 3600 rpm

Ersatzdraht 0,65 mm 20 Meter

Ersatzdraht für Styropor Schneidegerät.

Styropor Schneidgerät Typ 212 SL 30

Vielseitig und kompaktes Glühdraht-Standschneidegerät 212SL-30 für Polystyrolplatten, mit schwenkbaren Fussstützen, Freistellstütze, Eckschneider-Führungsschiene, beidseitigen Auflageschienen, Tiefenanschlag, ON/OFF-Schalter für Dauerbetrieb, Geländerbefestigung. Anwendungsmöglichkeiten: Auf dem Gerüst als Standgerät an die Wand gelehnt oder mittels Gurtband am Geländer gesichert, am Boden mit der Freistellstütze auch freistehend einsetzbar. Lieferumfang:Schneidegerät 212SL-30 inkl. schwenkbaren Fussstützen, Freistellstütze, Auflageschiene rechts mit integrierter Eckschneider-Führungsschiene, Ersatzsicherung, Ersatzdraht

Styropor Schneidgerät Typ 212 SL Akku

Vielseitiges und kompaktes Glühdraht- Standschneidegerät mit Akkubetrieb 212SL-30 Akku für Polystyrolplatten. Mobiler Einsatz dank Akkubetrieb. Bis 200 Schnitte mit 1 Akkuladung möglich. Mit schwenkbaren Fussstützen, integrierter Freistellstütze, Eckschneiderschiene, beidseitigen Auflageschienen mit Plattenanschlag, Drucktastbetrieb, Tiefenanschlag, Geländerbefestigung. Anwendungsmöglichkeiten: Auf dem Gerüst, an die Wand gelehnt, mittels Gurtband am Geländer gesichert oder am Boden mit der Freistellstütze auch freistehend einsetzbar.

Diem-concrete mixer tilting drum type Allround D 100C

Ahead of its time with the latest compact generation. Professionals use this concrete mixer Convenient operationThe most important operating elements such as toggle levers and switches are arranged in a user-friendly manner. Optimal size of the flanged drum openingExcellent accessibility and practical drainage of the concrete. Light and power connection innovatively combined in one machinePromises versatility on every construction site - 230V and 400V! Tried and tested chassisThe mobility on construction site terrain is guaranteed. The specially designed concrete mixer guarantees excellent mixing results. The tilting mixers drum type of the compact generation are extremely robust and maintenance-free, perfectly suited for daily construction site operations. Technical specifications: D 100C ALLROUND Motor 230/400V 0,75 KW Transmission 27 ¹ / min Capacity 160 l Mixing quantity 100 l Total height 1490 mm Total width 900 mm Total length 1350 mm Drum diameter 643 mm Drum height 576 mm Tilt gear - Weigth 101 kg Varnishing RAL 1013 Set of tiers Solid rubber

Diem- concrete mixer tilting drum type Allround D 120C

Ahead of its time with the latest compact generation. Professionals use this concrete mixer Convenient operationThe most important operating elements such as toggle levers and switches are arranged in a user-friendly manner. Optimal size of the flanged drum openingExcellent accessibility and practical drainage of the concrete. Light and power connection innovatively combined in one machinePromises versatility on every construction site - 230V and 400V! Tried and tested chassisThe mobility on construction site terrain is guaranteed. The specially designed concrete mixer guarantees excellent mixing results. The tilting mixers drum type of the compact generation are extremely robust and maintenance-free, perfectly suited for daily construction site operations. Technical specifications: Motor 230/400V 0,75 KW Transmission 27 ¹ / min Capacity 180 l Mixing quantity 120 l Total heigth 1535 mm Total width 943 mm Total length 1350 mm Drum diameter 643 mm Drum heigth 631 mm Tilting gear - Weigth 151 kg Varnishing RAL 1013 Set of tiers Solid rubber

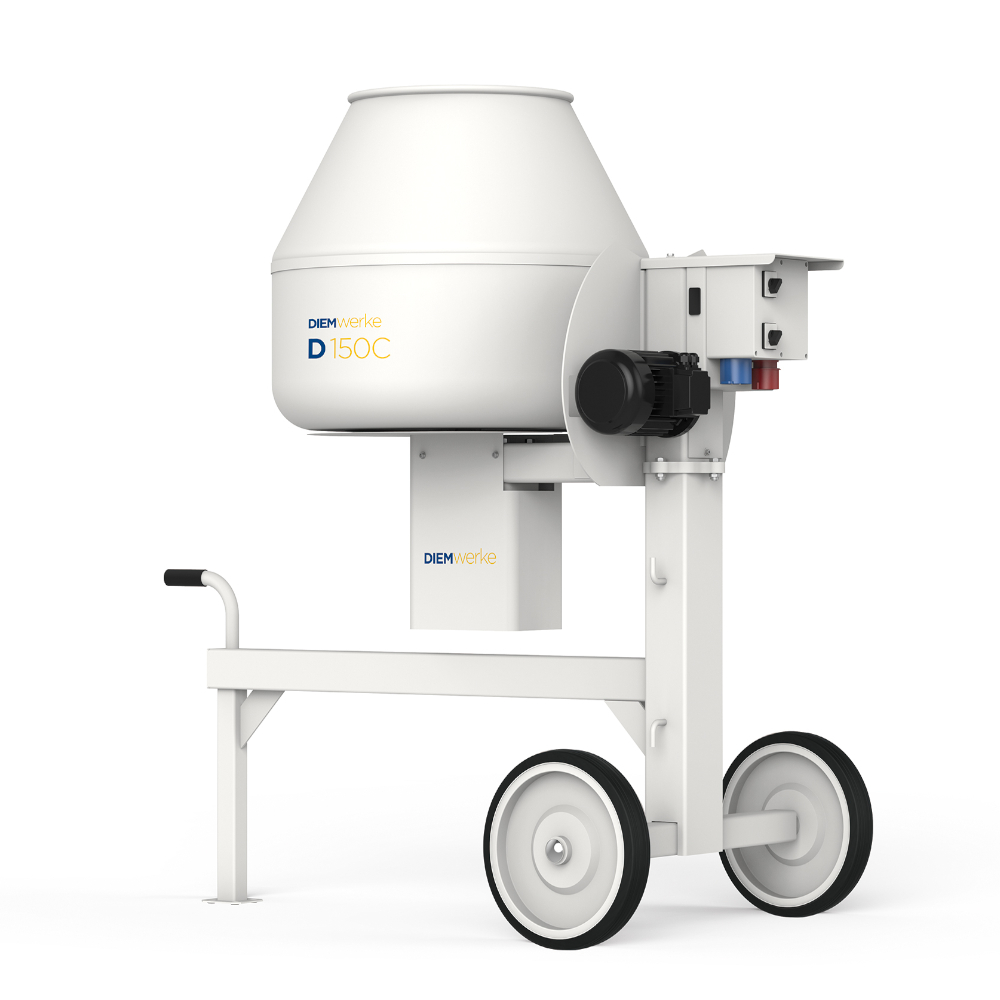

Diem-concrete mixer tilting drum type Universal D 150 C

Ahead of its time with the latest compact generation. Professionals use this concrete mixer Convenient operationThe standard built-in tilting gear enables automatic, stepless emptying without any effort. Optimal size of the flanged drum openingExcellent accessibility and practical drainage of the concrete. Light and power connection innovatively combined in one machinePromises versatility on every construction site - 230V and 400V! Tried and tested chassisThe mobility on construction site terrain is guaranteed. The specially designed concrete mixer guarantees excellent mixing results. The tilting mixers drum type of the compact generation are extremely robust and maintenance-free, perfectly suited for daily construction site operations. Technical specifications: D 150C UNIVERSAL Motor 230/400V 1,10 KW Transmission 27 ¹ / min Mixing quantity 150 l Total heigth 1565 mm Total width 980 mm Total length 1525 mm Drum diameter 800 mm Drum height 625 mm Tilting gear 1,10kW, 10¹/min Varnishing RAL 1013 Set of tiers Solid rubber

Concrete mixer Atika Comet 130

Technical specifications: Description: Concrete mixer tilting drum type Type / engine: S 150 type S 1000 230V, 0.36 kW Mixing quantity: 110 lt

Diem Zwangsmischer DZ 100 VS

The best sellerThere are almost no limits to the possible uses of the tried and tested best seller. Available in 230 or 400 volt versions, our DZ 100VS has made an excellent name for itself on small construction sites as well as in large-scale industry. The practical solid rubber tires guarantee optimal mobility. The specially developed Diem universal mixer with adjustable mixer parts and maintenance-free direct drive guarantees excellent mixing results even from very small quantities. It is suitable for fine and coarse-grained mixes up to a grain size of 32 mm. The quick emptying takes place via a segment slide in the drum base. The built-in protective grille provides the necessary security. Our CE-compliant high-performance compulsory mixers impress with their state-of-the-art, extremely robust design and special safety devices, such as the folding protective grille with coupled limit switch. One of the most important design criteria is the high-quality solid construction, which gives our compulsory mixers a very long service life.

Diem Zwangsmischer DZ 180 VS

The performerThis high-performance compulsory mixer is available in stationary or practical mobile design. The special feet and the built-in toggle lever mechanism ensure stability, the pneumatic tires guarantee optimum mobility. Our mixers are highly motorized, the mobile version is also available with either a 7.50 kW or 9.00 kW motor. The drum shell made of 5 mm highly wear-resistant steel and the solid underframe guarantee a particularly long service life and robustness. The maintenance-free gear and the adjustable mixer parts made of Hardox steel guarantee excellent mixing results for fine and coarse-grained mixes with a grain size of up to 32 mm. Almost all materials can be mixed with this universal mixer without an additional special mixer. The quick emptying takes place via a segment slide in the drum base. The built-in protective grille provides the necessary security.

Splitter saw Husqvarna model K 760 Cut-n-break

Our Cut-n-Break method is the natural choice when you need to cut deep at low maintenance costs. The K 760 Cut-n-Break enables you to cut as deep as 400 mm from one side. The two high-speed blades make a core in the saw cut, which can then easily be broken off using the accompanying breaking tool. This way you easily work your way through the material, at a very low diamond tool and maintenance cost. Delivered with twin blades and a breaking tool. Engine specifications Displacement 73,5 ccm Preformance 3,7 kW Vibration & noise data Vibration front handle 1,9 m/s² Vibration rear handle 2,8 m/s² Sound pressure level 101 dB(A) Sound power level, LWA 115 dB(A) Cutting equipment Cutting blade diameter 230 mm Max. cut depth 400 mm Overall dimensions Weight (excl. cutting equipment) 9,6 kg Weight incl. cutting equipment 11,1 kg

Trennsäge Husqvarna Modell K 770 14"

inkl. 350 mm Diamant Trennscheibe Die Trennsäge Husqvarna Modell K 770 ist ein kraftvoller Allround Trennschleifer mit Merkmalen, die ihn zu einem der besten Trennschleifer auf dem Markt machen. Das halbautomatischen SmartTension ™ -System ermöglicht eine optimale Kraftübertragung, minimalen Verschleiß und maximale Lebensdauer des Riemens. Das geringe Gewicht, das herausragende Verhältnis von Leistung zu Gewicht, der zuverlässige Startmechanismus und die außergewöhnlich niedrigen Vibrationen bedeuten weniger Belastung und maximale Produktivität.

Splitter saw Husqvarna model K 970 16 "

Robust, reliable, light and powerful - the K 970 Splitter saw machine is always ready for use. The perfect choice when you need an all-round Splitter saw . The machine works even under the most difficult conditions, such as fuel and weather fluctuations. Together with the KV 970 guide carriage, it is also suitable for use in road construction. The guide carriage also has the advantage that you can concentrate fully on cutting. Motor spezifications Displacement 93,6 ccm Power 4,8 kW Vibration & noise data Front handle vibrations 3,9/3,4 m/s² Rear handle vibrations 4,2/4,8 m/s² Sound pressure level 104 dB(A) Sound power level, LWA 115 dB(A) Cutting equipment Cutting disc diameter 350/400 mm Cutting depth, max. 125/145 mm Combined bushing diameter 20/25,4 mm Overall dimensions Weight (excluding cutting equipment) 10,9/11,9 kg

Cut-off saw Husqvarna Modell K 1270

Some jobs require exceptional power. The cut-off saw K 1270 disc cutter is a real powerhouse with an impressive 5,8 kW output, turning your heaviest cutting jobs into a fast and effective operation. The model K 1270 is available with diamond disc 350 mm / 400 mm . Suitable for road works when used with the corresponding KV 9/12 trolley. The trolley also means you can fully concentrate on the cutting job.

Cutting trolleys Husqvarna K 760/770

Husqvarna cutting trolleys are designed specifically for Husqvarna’s handheld petrol power cutters. The quick connections make it easy to install the cutter on the trolley, and the cutting depth is easy to adjust. With a cutting trolley it’s easy to cut in straight or curved lines, and close to walls and curbstones. The design is compact and they’re easy to fold up and transport.

Cutting trolleys Husqvarna K 970 & 1270

Benzinkettensäge 695 GC Komplettpaket

Complete with sword and Euromax chain Engine 94 ccm, 4,8 KW / 6,4 PS Weight 9,6 Kg The 695GC performs 6,4 PS with only 9,6 Kg the needed performance to cut hardest concrete, stone and walls. New product development allows lower vibration and sounds, without losing performance. This chainsaw fits perfect for the daily use at construction sites or for other drilling and sawing tasks.

ICS 2 Oil bottle á 200 ml Nr. 505885

Extensive labor-, and operating tests resulted in a perfect oil formula which burns clean, better heat protection and a improved protective coat, whereby reduced friction and lower piston ring wear.

Innenrüttler Typ IR / Profi

Für schwere Dauereinsätze auf der Baustelle sind nur qualitativ hochwertige, zuverlässige Innenrüttler geeignet. Sie müssen robust, wartungsfrei und unempfindlich gegen Wasser und Verschmutzung sein. Die Baureihe IR 36T - IR 65T erfüllt diese Anforderungen. Sie können an alle Umformer mit 42-50 V/ 200Hz angeschlossen werden. Dreifache Kugellagerung, gehärteter Rüttelkopf und Rohr, sowie Thermoschutz in der Wicklung und erstklassige Verarbeitung garantieren ausgezeichnete Leistung und lange Lebensdauer. Artikel-Nr. Typ Ømm Schlauch-länge Anschluss-kabel WirkungskreisØ cm Verdichtungm³/h Stromauf-nahme kg 59AV38P Profi IR 38 5 m 15 m 40 bis 30 8 A 12,0 59AV50P Profi IR 50 5 m 15 m 70 bis 30 11 A 14,0 59AV58P Profi IR 58 5 m 15 m 95 bis 30 15 A 16,0

Innenrüttler iSpyder

Qualitativ hochwertiger, zuverlässiger Innenrüttler mit integriertem Frequenz-Umformer (230V) für den schweren Dauereinsatz auf Baustellen. Robust, wartungsfrei und unempfindlich gegen Wasser und Verschmutzung. Unsere Innenrüttler werden mit größter Präzision gefertigt. Umformer: Überlastunggschutz Eingegossene Umformerteile Wasserunempfindlich Stoß- und vibrationsfest

Frequenzumformer Profi

Mechanische Umformer mit Stahlrohrschutzgestell und Magnetinduktion. Serienmäßige Magnetwärmeschutzschalter verhindern Kurzschlüsse und übermäßige Aufwärmung Eingangsspannung 230 V

Aluminum tripod 60-ALQCI20-O flat headed

Tripod aluminum, 97cm - 160cm, 5/8 "x11 thread Aluminum tripod for construction. Our construction tripods are equipped with quick or screw clamps, are very stable and robust and are characterized by a very good price-performance ratio. Size open: 160 cm Size closed: 97 cm Weight: 3.7 kg Thread: 5/8 "-11 Flat head Quick clamp Color orange
