Uni Futterrohr UFR
Available and in stock
- Order number: 61LXUFR100250
The lining tube of the future! - For every type of wall!

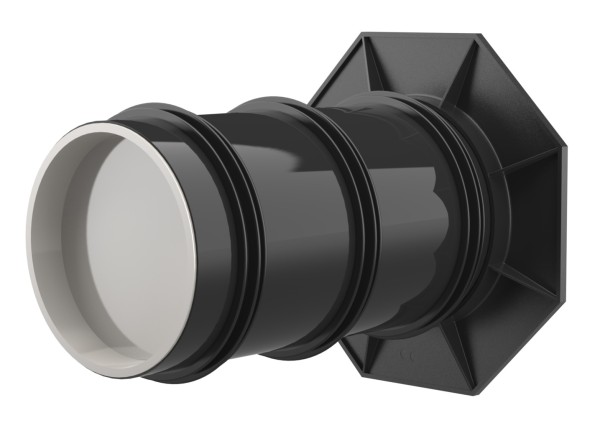

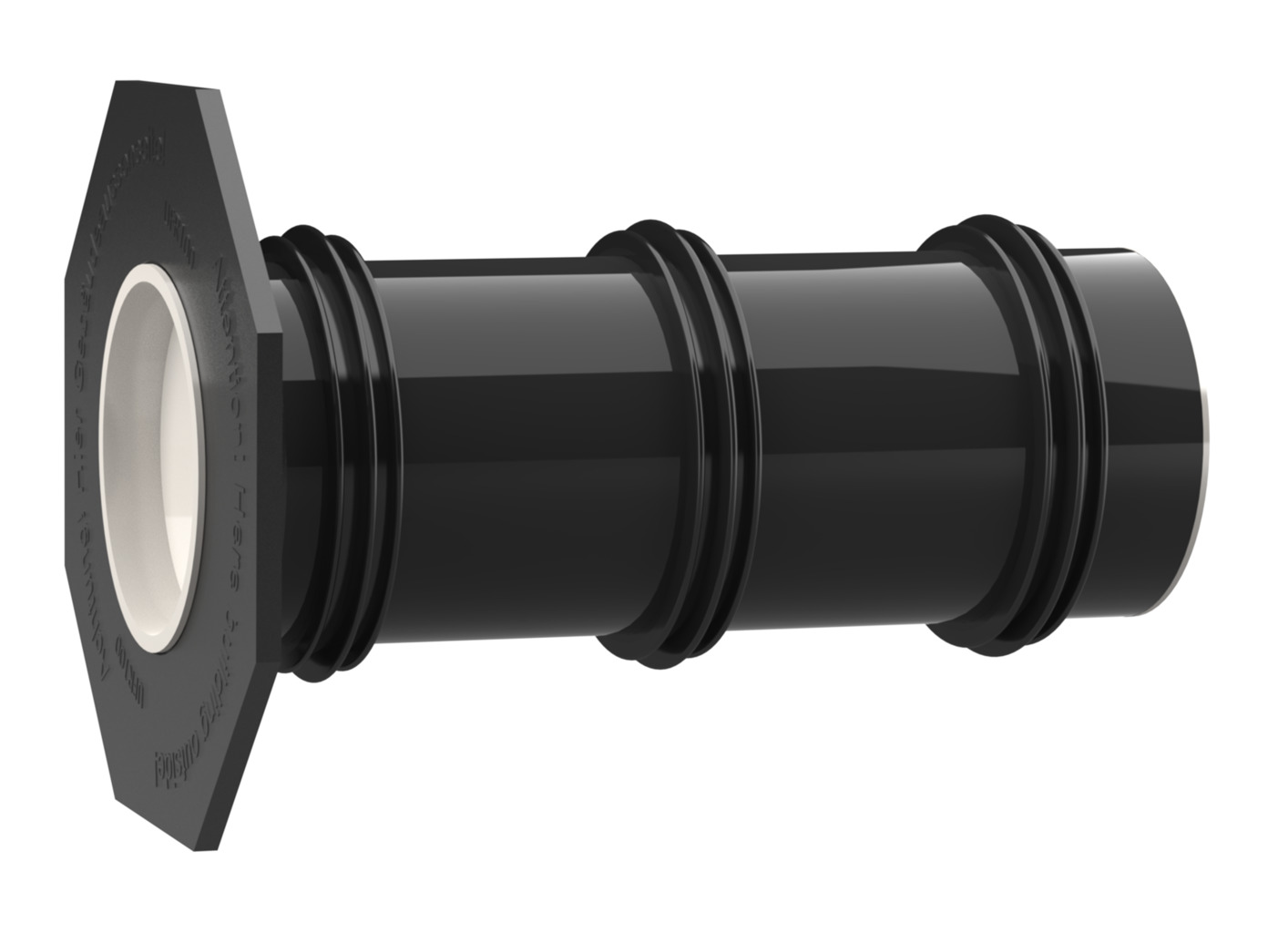

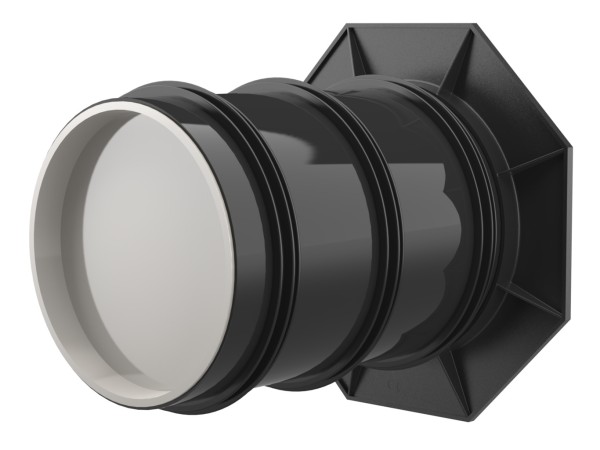

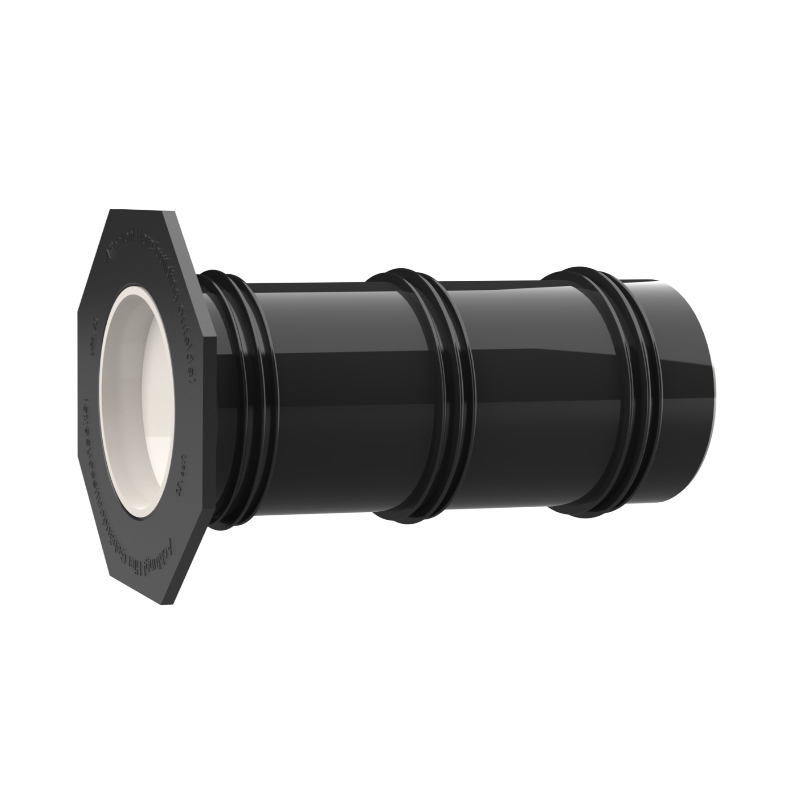

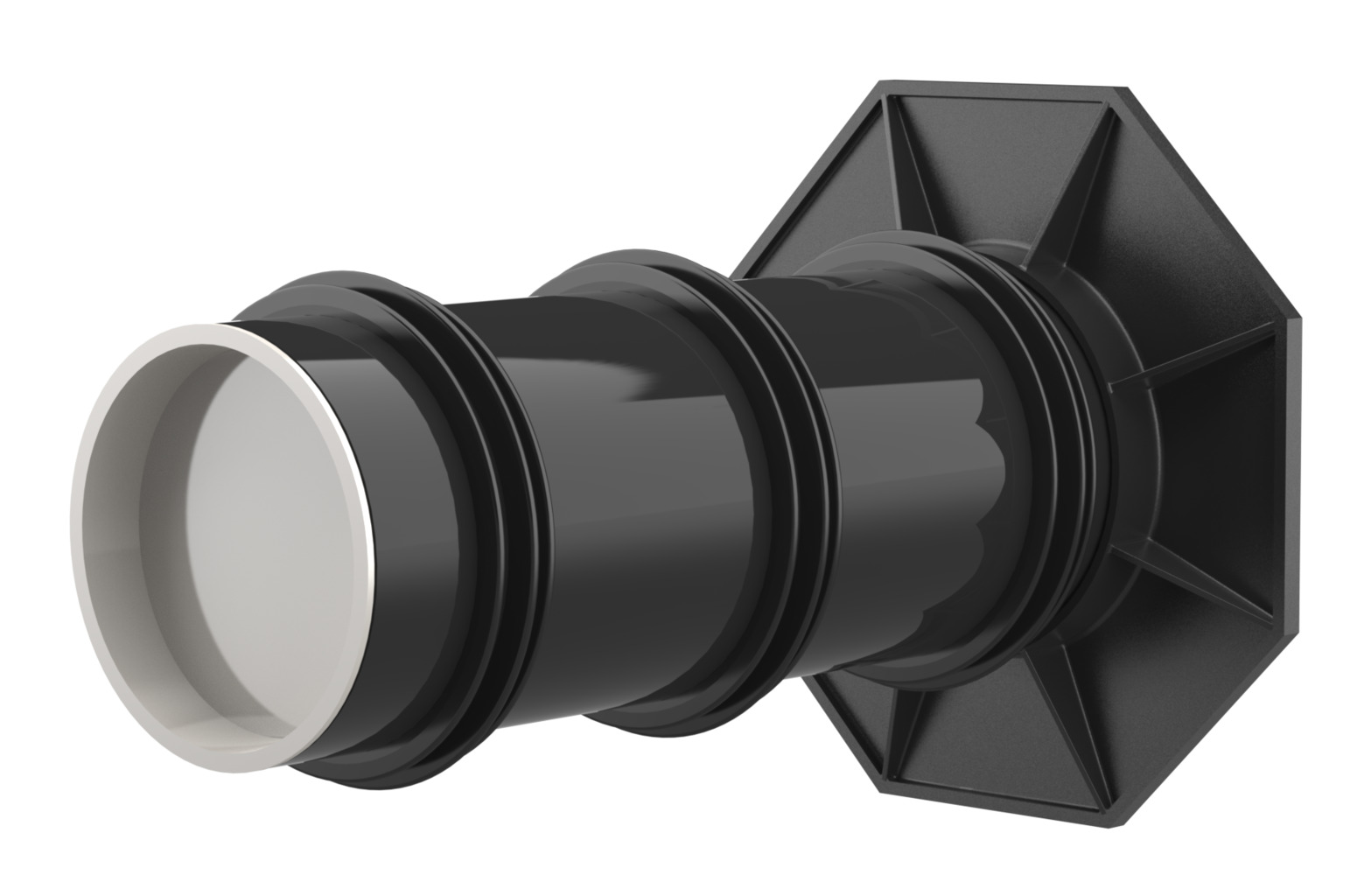

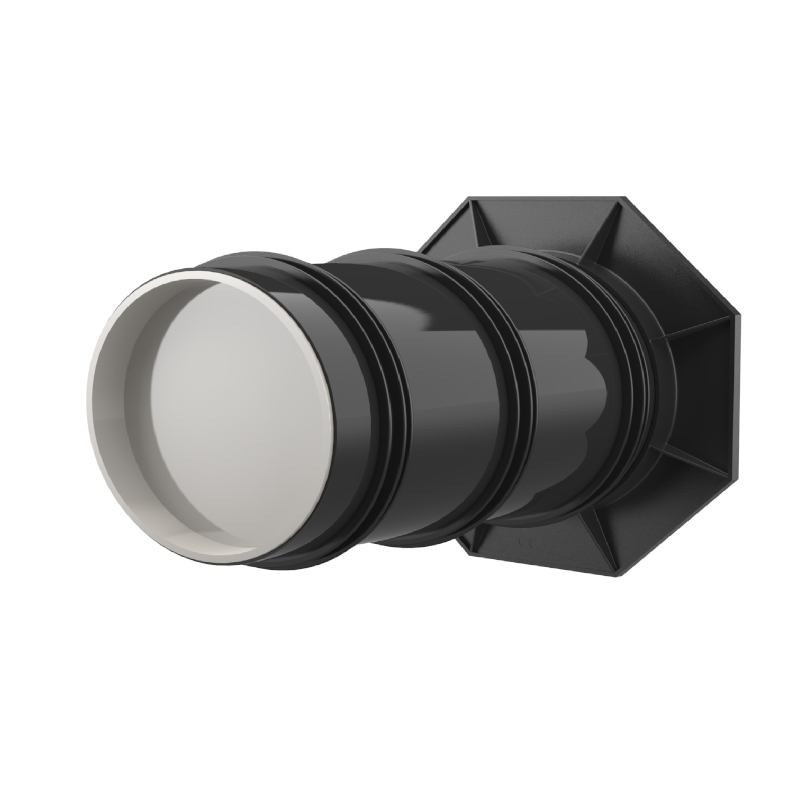

The Uni casing pipe (UFR) is a plastic casing pipe with an octagonal filler flange (flange made of ABS).
When using plastic-modified bitumen coatings (load case in accordance with DIN 18195 Part 4), the external seal can be applied via the filler flange.
The profile web sealing tapes included in the scope of delivery ensure a secure seal even with double / element walls and waterproof concrete.
Longitudinally watertight up to 1 bar in waterproof concrete (white tub).
| Länge in mm: 250 mm | ||||||
| Order number | Picture | Variant | Delivery | |||
| 61LXUFR100250 | | Länge in mm: 250 mm ø in mm: 100 mm Available and in stock | Available and in stock | |||
| 61LXUFR150250 |  | Länge in mm: 250 mm ø in mm: 150 mm Available and in stock | Available and in stock | |||
| 61LXUFR200250 |  | Länge in mm: 250 mm ø in mm: 200 mm Available and in stock | Available and in stock | |||
| Länge in mm: 300 mm | ||||||
| Order number | Picture | Variant | Delivery | |||
| 61LXUFR100300 |  | Länge in mm: 300 mm ø in mm: 100 mm Available and in stock | Available and in stock | |||
| 61LXUFR150300 |  | Länge in mm: 300 mm ø in mm: 150 mm Available and in stock | Available and in stock | |||
| 61LXUFR200300 |  | Länge in mm: 300 mm ø in mm: 200 mm Available and in stock | Available and in stock | |||
